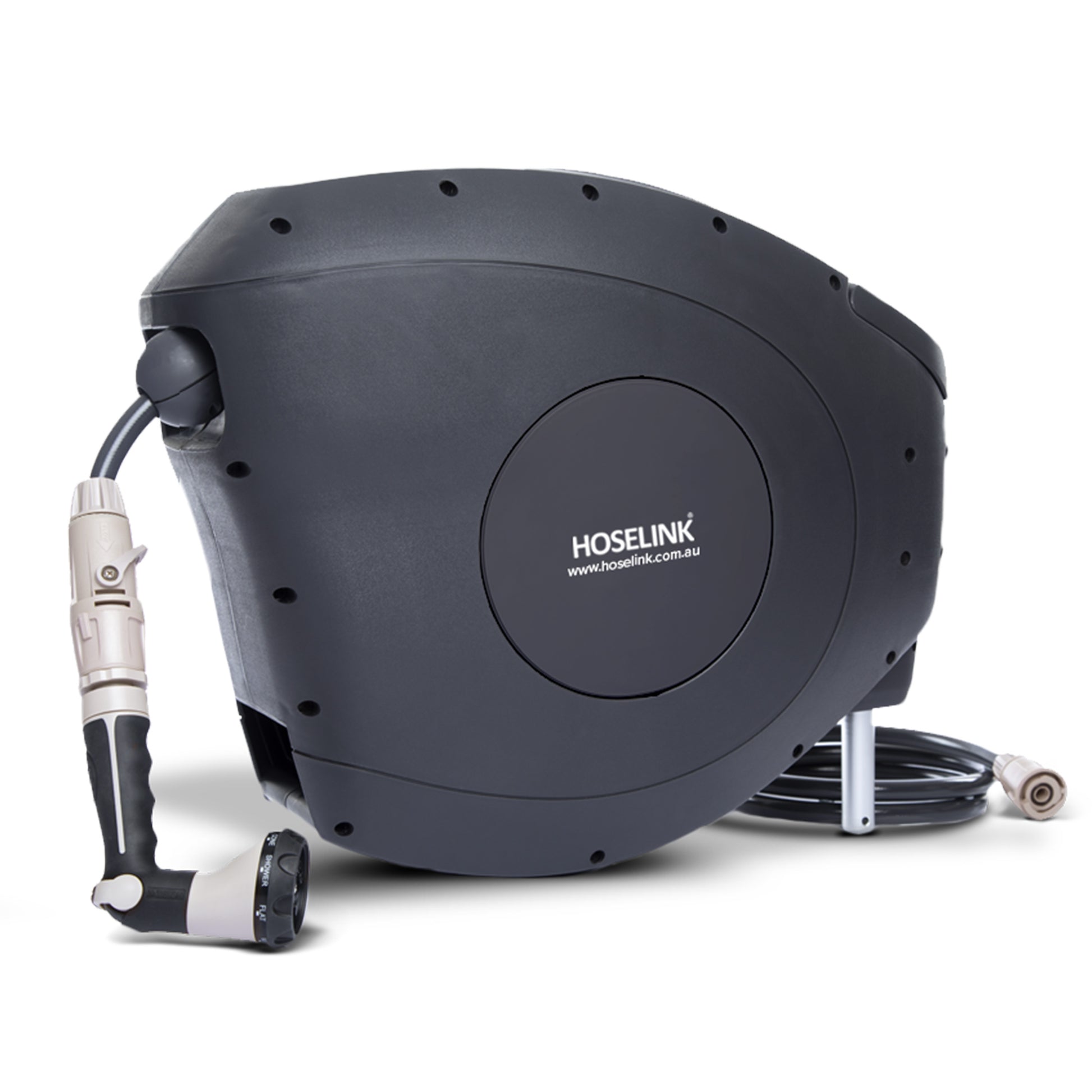

Hi-Flow 25m Retractable Hose Reel - Charcoal

Ideal if you have low water pressure

item: 3425-CH
24 reviews
$255

Product Info

Finishing the Charcoal range off with the 25m Hi-Flow option.

Difference between Hi-flow and standard reels

Most retractable reels (including Hoselink’s standard range) use a 12mm internal hose diameter, whereas the Hi-flow model features a larger 14mm size. This equates to a higher water flow, providing better pressure to clean the car, drive the sprinkler or water hard-to-reach plants. Ultimately you get a better watering experience overall!

Solution for low water pressure

Watering with low water pressure takes longer because of the slower flow rate and shorter distance thrown by sprayers and sprinklers. Retractable reels (particularly longer models) are commonly known for having an impact on water pressure in comparison to a standard garden hose. The 25m Hi-flow Retractable Reel offers the best of both worlds by allowing for better water pressure with the convenience of a retractable reel.

If you’ve had enough of leaking, bursting hose fittings and unsightly hoses that tangle and kink, then Hoselink’s Retractable Hose Reel will revolutionise the way you water. For those wanting to maintain or increase water pressure, the 25m Hi-flow Retractable Reel is the ideal way to enjoy watering your garden, every day.

How it works

The 25m Hi-flow Retractable Hose Reel is a wall-mounted hose storage unit with a high quality spring-loaded hose. The specially designed ‘stop-anywhere’ locking mechanism secures the hose at any length, eliminating excess hose to prevent kinks and tangles.

To use, you simply pull the hose out to the desired length and pause to lock the hose. All you have to do to lengthen the hose is walk it out further and stop again, wherever you want. Once you’ve finished watering, lightly tug the hose to engage the automatic rewind system and the integrated self-layering mechanism neatly coils the hose into the reel as you walk it back in.

This product features 14mm hose connectors (denoted by the green, instead of yellow nut) at both hose ends, which are compatible with all our standard 12mm fittings.

Inclusions

The 25m Hi-flow Retractable Hose Reel is a complete package that arrives fully equipped and includes:

  • Spring-loaded hose reel unit pre-fitted with 25m of high quality 14mm diameter hose
  • Full set of pre-fitted Hoselink no-burst connectors including Universal Tap Connector and Hose Connector with Flow Control so you can easily switch watering accessories
  • Comfort 8-Pattern Flow Control Sprayer and Accessory Connector with Swivel
  • 2m Leader Hose
  • Durable Wall Bracket and Installation Hardware
  • Retractable Hose Reel Plugs (to prevent wasps from nesting in screw holes)

Installation

Follow our step-by-step instruction manual or installation video to quickly and easily install the wall bracket onto a solid wall or post using the included hardware kit. Place the hose reel unit onto the bracket and attach the leader hose to the tap. The hose reel unit will swivel 180 degrees on the bracket, following your direction as you water.

Warranty

If you’re new to Hoselink, you’ll find our products are carefully designed to be durable, attractive and most of importantly, easy to use. Hoselink Retractable Reels are covered by a 2 year warranty and a 30 day money back guarantee.



See more Hoses & Reels.

Read More
Easy to use Reel

Easy to Use

Effortlessly use your hose at any length with the specially designed 'stop-anywhere' locking mechanism. To tidy your hose away, simply give it a gentle tug and the automatic rewind feature will retract your hose and neatly coil it inside the unit using the integrated self-layering mechanism, saving you precious time and energy.

Flexible Rewind Reel

Flexible Watering

The Hose Reel comes with our innovative Comfort 8-Pattern Flow Control Sprayer that's lightweight, thumb-controlled and has eight different spray functions suitable for every watering job. Thanks to the cleverly designed mounting bracket, the Hose Reel also pivots 180° and follows your direction around the garden as you move around, making it easier than ever to water your backyard.

Garden Hose Reel

Ready to Go

The Hose Reel comes fully equipped and pre-fitted with Hoselink hose fittings and a Comfort 8-Pattern Flow Control Sprayer. Simply mount the bracket to the wall using the supplied stainless steel screws and you're ready to start enjoying hassle-free watering!

Built Tough

With UV-stabilised casing, stainless steel hardware, a premium quality hose, and no-burst hose fittings, the 25m Hose Reel is ready for whatever Australia's tough environmental conditions throws at it. The durable case protects the hose to remain flexible in the cooler months and safe from the heat of the harsh summer sun.

Portable Hose Reel

Comfortable to Carry

Integrated carry handles make it easy to lift the Hose Reel from its mounting bracket to transport it wherever you need. With the option to purchase an Additional Bracket, you can use and store your Hose Reel in multiple locations. The Hose Reel can also be padlocked (sold separately) to the bracket to thwart would-be thieves.

complete hose package

Complete Package

The Hose Reel arrives at your door with everything you'll need including a complete set of Hoselink Hose Fittings, a Comfort 8-Pattern Flow Control Sprayer, 25m of quality hose, a 2m leader hose and mounting bracket. Everything is set up and ready to go!

Product Specifications

Model Name Hi-flow 25m Retractable Hose Reel - Charcoal
Model Number 3425-CH
Material Reel/bracket (polypropylene), hose (PVC), screws/pins (stainless steel), plugs (plastic)
Colour Charcoal
Hose Reel Dimensions H49cm x W27cm x D61cm
Mounted Hose Reel Dimensions

D71cm (when facing out)
D27cm (when pushed flat against wall)

Universal Bracket Dimensions H20cm x W10.5cm x D16cm
Weight 13.55kg
Fitting Size 14mm fittings specifically designed for use with this hose reel only.
Compatibility The 14mm connectors can be used with any standard Hoselink 12mm fittings and watering accessories.
Maximum Pressure 150psi
Maximum Water Temperature 40 degrees
UV Resistant Yes
Wall Mounted Yes
Leader Hose 2m
Assembly Required Yes (you will need a drill)
Use with Water Tanks Yes

What's Included

  • Spring-loaded Retractable Hose Reel
  • 25m of Hi-Flow Quality Hose
  • 2m Leader Hose
  • Set of Hoselink fittings including 14mm Hose Connector, 14mm Hose Connector with Flow Control (both pre-fitted), Universal Tap Connector, Accessory Connector with Swivel, Comfort 8-Pattern Flow Control Sprayer, Spare O-Rings (x3)
  • Mounting bracket
  • Stainless steel screws (x4)
  • Washers (x4)
  • Masonry plugs (x4)
  • Instruction Manual

Warranty

Retractable Hose Reel Unit 2 years
Tap to Hose Connector Set 2 years
Hose Connector with Flow Control 2 years
Accessory Connector with Swivel 2 years
Comfort 8-Pattern Flow Control Sprayer 2 years

Q. Can I put my own hose in this hose reel?
A. No, you cannot put your own hose into the reel nor replace the hose in the reel. The retraction mechanism operates via a spring, and is fitted at the factory.

Q. Which hose from your range comes in the hose reel?
A. This product uses a specifically designed hose for use in the retractable hose reel unit.

Q. Does the hose in the hose reel kink?
A. This hose has been specifically designed for use in an auto rewind hose reel unit and must be soft and pliable so that it retracts easily back into the unit. Although this hose is not designed for kink-resistance specifically, using a hose reel greatly reduces the chance of a kink occurring. This is due to only using the correct length of hose for the task at hand so there is no extra hose for a tangle or kink to occur. In addition, the retraction mechanism on the reel ensures that the hose is always reeled back in a straight line, so the hose does not get twisted (a common cause of kinks).

Q. My tap is 3m away from where I need to put the hose reel.  What can I do?
A. You can add an additional length of hose to the leader hose in order to reach the water supply. To do this, you will need a suitable length of hose with Hoselink connectors on either end. If you have a suitable hose length for this purpose, we recommend purchasing a Hose Joiner Set (2410). Alternatively, we sell Leader Hose Extensions in 1.5m and 5m lengths pre-fitted with connectors, for your convenience.

Q. Does the hose reel have to be mounted?
A. Yes, because it uses tension for retraction and extension, the hose reel unit must be mounted for correct operation to a solid wall or post.

Q. What surfaces can I mount the hose reel to and how?

Wall Type







Requires masonry drill bit
and provided
masonry plugs.
Flat wooden, weatherproof backing board needed for uneven surfaces.
Bracket must be mounted to a flat surface.
Wooden backing board must be anchored into a stud behind the material. At least one screw top and bottom must be used to secure board into stud.
Use the hammer setting on your power  or a rotary drill (start off with the normal drill setting)
Spearhead drill to start holes
Anchor plugs with Sika Flex.
Blow out any debris in the holes, fill each hole (halfway) with Sika flex 11FC, tap in the masonry plugs.
Let dry overnight then attach the bracket.
Concrete
Checkmark
Close
Close
Checkmark
Close
Close
Brick
Checkmark
Close
Close
Checkmark
Close
Close
Steel
Close
Close
Checkmark
Close
Close
Close
Colourbond
Close
Checkmark
Checkmark
Close
Close
Close
Wood
Close
Close
Close
Close
Close
Close
Hebel
Checkmark
Close
Close
Close
Close
Checkmark
Plaster *
Close
Close
Checkmark
Close
Checkmark
Close
Render *
Checkmark
Close
Close
Close
Checkmark
Close
EPS
Close
Close
Close
Close
Close
Close
Weather Board
Close
Checkmark
Checkmark
Close
Close
Close
Tiles
Checkmark
Close
Checkmark
Close
Checkmark
Close
Cladding
Close
Checkmark
Checkmark
Close
Close
Close
Pavers
Checkmark
Close
Close
Checkmark
Close
Close
Sandstone
Checkmark
Close
Close
Checkmark
Close
Checkmark
Besa Block
Checkmark
Close
Close
Checkmark
Close
Checkmark
Stucco*
Checkmark
Close
Close
Close
Checkmark
Close

* Dependant on substrate material


Q. If I would like to mount the reel onto a post, how deep should the post be into the ground?
A. The post depth required depends on a number of factors, including how hard packed the soil is and how much concrete is used. We suggest 0.5m as a safe depth for the post before pouring the concrete. In addition, we would recommend that the hole be 30cm square to provide enough concrete to keep the hose reel firmly in place. Hoselink's Retractable Mounting Post is the perfect solution.

Q. Can I use the Retractable Hose Reels with hot water?
A. No, they are not recommended for use with hot water. Maximum water temperature is 40 degrees.

Q. Can I leave the tap turned on at all times?
A. We would recommend turning the water off at the tap at the end of each watering session. The increased pressure from the water may cause unnecessary wear to the internal mechanism of the hose reel, potentially shortening the life of the product.
