Total Misting Package (Kit + Timer)
All-in-one solution to staying cool this summer!

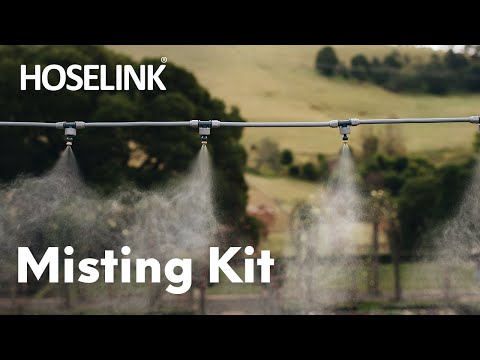

Product Video
See it in action! Watch a video featuring this product to learn more.
Product Info
Check your local water restrictions and regulations before purchasing
Fully customisable to suit your area.
Kit includes: 15m Misting Kit with Directional Heads, Misting Timer and Tap Connector.
Perfect for your outdoor entertaining area or greenhouse, each outlet emits a very fine misting spray to supply a cooling, dampening effect to your patio, plants and animals or wherever else you need it. The timer frequency can be set at short intervals for the perfect cool environment.
Misting Kit
The fully customisable kit features a 15m long, 5mm diameter PVC tube with 8 misting connections to suit your area and it comes with a FREE Hoselink Universal Tap Connector and Accessory Connector for quick connection to your hose. Each misting outlet can be inserted into the tubing at a distance between 50cm - 1.5m.
Uses
- Sets up a misting environment suitable for greenhouses
- Keep large outdoor areas such as patios and decks cool with the fine, cooling mist
- Keep pet kennels cool during hot weather
Where to attach
Attach to walls, beams or the underside of roofing using the supplied hanging snap clips or nail with supplied clips for more permanent fixing
How to connect to the water supply
This kit is supplied with a Hoselink Accessory Connector so you will need additional parts to connect to the tap. Depending on the distance between the tap and where the kit will be loacted, you can either connect the kit to a Hoselink-fitted hose or to a Hoselink Tap Connector (supplied in kit).
Water Pressure
Be sure to use LOW water pressure with this unit - a quarter turn of the tap will suffice in most situations. High water pressure may result in burst hoses which will void the warranty.
Misting Timer
Use this specialised timer with a misting watering system in outdoor entertaining areas and greenhouses.
Frequency options: 30s, 1min, 2min, 3min, 5min, 10min, 30min, 60min, 2hr, 6hr, 24hr
Run time options: 5s, 10s, 20s, 30s, 1min, 2min, 5min, 15min, 30m, 60m
Requires a 9V battery, not included.
If you require additional individual parts for this kit, they can be purchased online here: https://www.hoselink.com.au/spare-parts
See more Timers.
What's Included
15m Misting System Hose
15m grey PVC hose line.

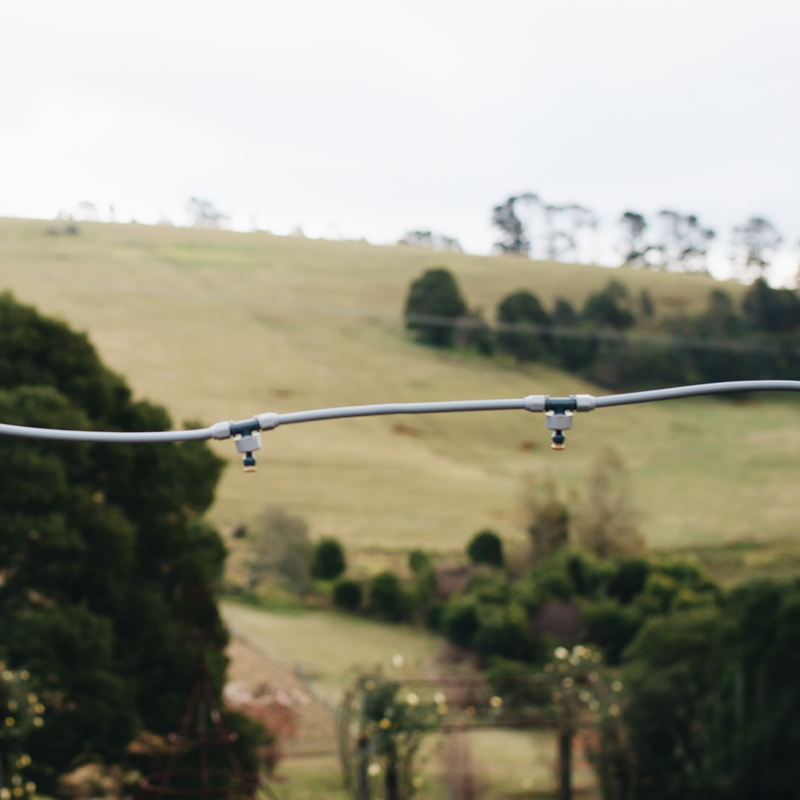

Misting System Inline Mist Valve x 7
Misting head that connects to the hose line on either side.
Misting System Stop Mist Valve
Use to stop water flow at the end of the misting hose line. Also acts as a misting head.
Misting System Installation Clip x 8
Hanging snap clip used to secure the hose line to wire, string or other suitable fixture.
Misting System Installation Pin x 8
Plastic u-shaped fitting used to secure the hose line to timber.
Misting System Hose Connector
Connects the misting system hose line to your water source. Use with the Accessory Connector (included) to attach your Hoselink fitted hose.
Universal Tap Connector
Screws onto any size Australian tap for a watertight seal between your tap and hose. Can be used with accessories that have a male thread (e.g. pressure washers, caravans, boats).
Misting Timer
Specialised misting timer with run times starting from 5 seconds and multiple frequency options. Ideal for greenhouses and outdoor entertaining areas.
Product Specifications
| Model Name | 15m Total Misting Package |
| Model Number | 5827 |
| Material | Rubber, plastic, brass |
| Colour | Grey, black, brass |
| Misting Heads |
7x Directional Misting Heads 1x End Misting Head |
| PVC Hose | 15m length, 5mm internal diametre, 8mm external diametre |
| Clips |
8x Nail U-Clips 8x Hanging Snap Clips |
| Assembly Required | Yes |
| Hose Fitting Size | 12mm |
| Individual Item | No |
| Warranty | 1 year |
What's Included
- 1x Misting Timer
- 1x 15m Grey PVC Hose
- 7x Directional Misting Heads
- 1x End Misting Head
- 1x Hoselink Accessory Connector
- 1x Hoselink Universal Tap Connector
- 1x Black Hose End
- 8x Nail U-Clips
- 8x Hanging Snap Clips
- Latest Hoselink Catalogue
Q. How long is the hose from the tap?
A. This is a fully customisable kit so you can cut the 15m hose as it best suits your situation.
Q. What do I do if I want to set up the kit far away from the tap?
A. You can attach a regular hose to the connection point where you want to start the misting system.
Q. What the best way to set up the system if I'm using it in an outdoor entertaining area?
A. It's best to have the misting heads located just outside where people will be sitting, and not directly overhead (or over tables, etc). When using the system with the Misting Timer (recommend for this purpose), there is some residual dripping from the heads when the water stops. It's best for you and your guests to enjoy the mist without dripping on your head.
Q. Can I get additional parts to add to my kit?
A. Yes, we now sell each of the kit components individually, all are listed in the Spare Parts category and can be ordered online: https://www.hoselink.com.au/spare-parts
Reviews
- Reviews
- Questions
- timer
- system
- service
- Hoselink
- package
- quality
- area
- anyone
- weather
- company
AustraliaThe product is great and affordable, however I did find a hole in the pipe which was not a great problem as I removed and replaced the section. I added extra 8mm saddles to hold the pipe neatly to my structure (sourced elsewhere as I could not find them on your web site) and everything is running well.
AustraliaIt's great. I need a couple of tee junctions and heads. After covid.
AustraliaLove this system! Definitely recommend for your outdoor entertaining areas
AustraliaGot this for my greenhouse and set it up right away . Had a hiccup the first day as there was some **** in my hose that clogged them up so i contacted hose link and asked for some help online. Got me fixed up right away , now they are working like a charm keeping my green house watered . The timer works perfectly i had it watering every 15 mins on the first day just for testing and now i have it every 6 house for 15 mins . Just set and forget . I was so happy i bought a second set to completely cover the green house
Australiaa great kit, needs more installation clips, 20 would be perfect to stop hose from sagging.
AustraliaIt's amazing way to cool down. So easy to assemble
AustraliaOnly been installed for a few weeks around the edge of my outdoor area but so far so good- on some really hot Perth days it’s made a definite difference. Nice fine mist that doesn’t wet the area below if it’s suitably hot and breezy. Timer a bit finicky but works well once it’s set up.
AustraliaProduct was bought as a gift for my son. I don't think he has installed it yet.
AustraliaI got the ‘Total Misting Kit’ which has the ‘all you need’ components for a basic set up. This included a timer which really is essential so that you can control how the system operates. The good bits: * Swivel head misters - give you much more flexibility to set mist angle * Connections - mist heads to hose line - good firm positive grip. The locking collars ensure that they are not likely to pop off under pressure but the hose lines are easy to work off if you have a modification or adjustment to do. * Ease of setup - fairly straight forward as a single line misting system. You have to experiment with spacing to suit your environment. I found 120cm spacing worked for me. The lines will stretch a bit after setup so I had to do some cut and readjustments to stop the lines sagging too much. * Timer - relatively easy to set and operate once you understand it. My partner may have difficulty with it to begin with. Competitor misting systems do not seem to have a dedicated timer available. This is a big plus here. * Mist quality - very fine mist - perfect. Quick evaporation resulting in very quick cooling effect. The things that could improve: * The availability of extra components from the company would give users of this kit great flexibility in how they set it up. These items appear not to be available which is disappointing as it meant I had to go to other suppliers to bodge something together that worked for my situation: * Inline Joiners - you make mistake cutting a line, there is no option available to rejoin or to add additional line lengths without having to incorporate a misting head. * t-joiners. * in-line tap - to control different areas of misting. * end plug with no mister head - not available. * Mounting options - the kit came with two mounting options - hanger clips and nail in hose clips. Great for temporary setups or wooden framework. There appears to be nothing available for mounting to steel fabricated pergolas. I had to source saddle clamps and screws from another supplier. Overall it is a great system. I would buy it again.
AustraliaHighly successful. Works a treat in my new orchid house
